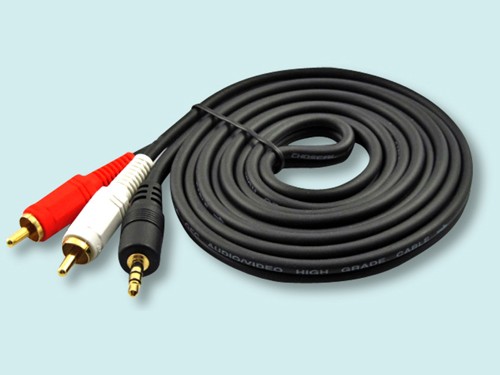

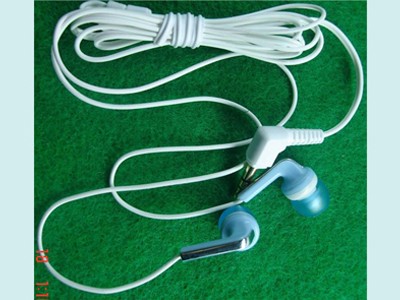

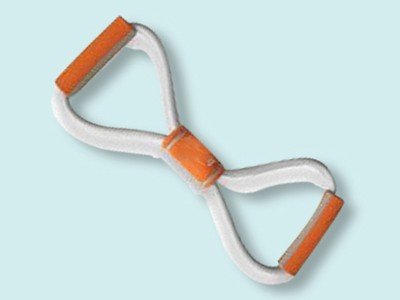

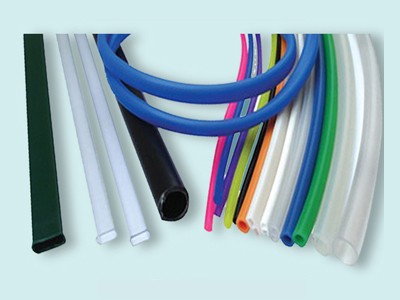

H400S系列是针对电线电缆、密封条、挤出管材等设计,广泛应用于电源线、USB线、数据线、耳机线等低频率电器线材, 以及冰箱密封条、门窗密封条及拉力管等领域。
H400S series is special for wire,cable.seal and extruded pipe,widely used in the power cord,USB cable,data cable,headset and other low-frequency electrical wire,and the refrigerator seal,door seal and pull tubes and other fields.
产品特点Product Features:符合最新环保要求,物品性能安全可靠,油漆附着力好。
测试项目
Test Items
硬度
Hardness
比重
Specific Gravity
(g/cm³)
抗拉强度
Tensile Strenght
(kgf/cm³)
100%定伸强度
100% Tensile Strength
(kgf/cm³)
断裂延伸率
Elongation at Break
(%)
撕裂强度
Tear Strength
(kgf/cm³)
化学安全
Chemical Safety
H402-302B 30A 0.89 33 25 900 30 FDA
RoHS
PAHs
Halogen-free
6p-free
H411-402P 40A 0.95 60 20 900 30
H411-602P 60A 0.95 85 30 600 35
H511-752D 75A 0.96 90 40 600 40
